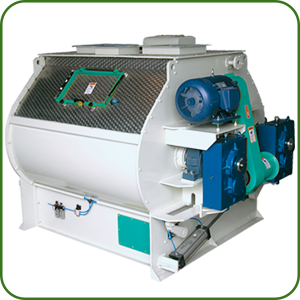

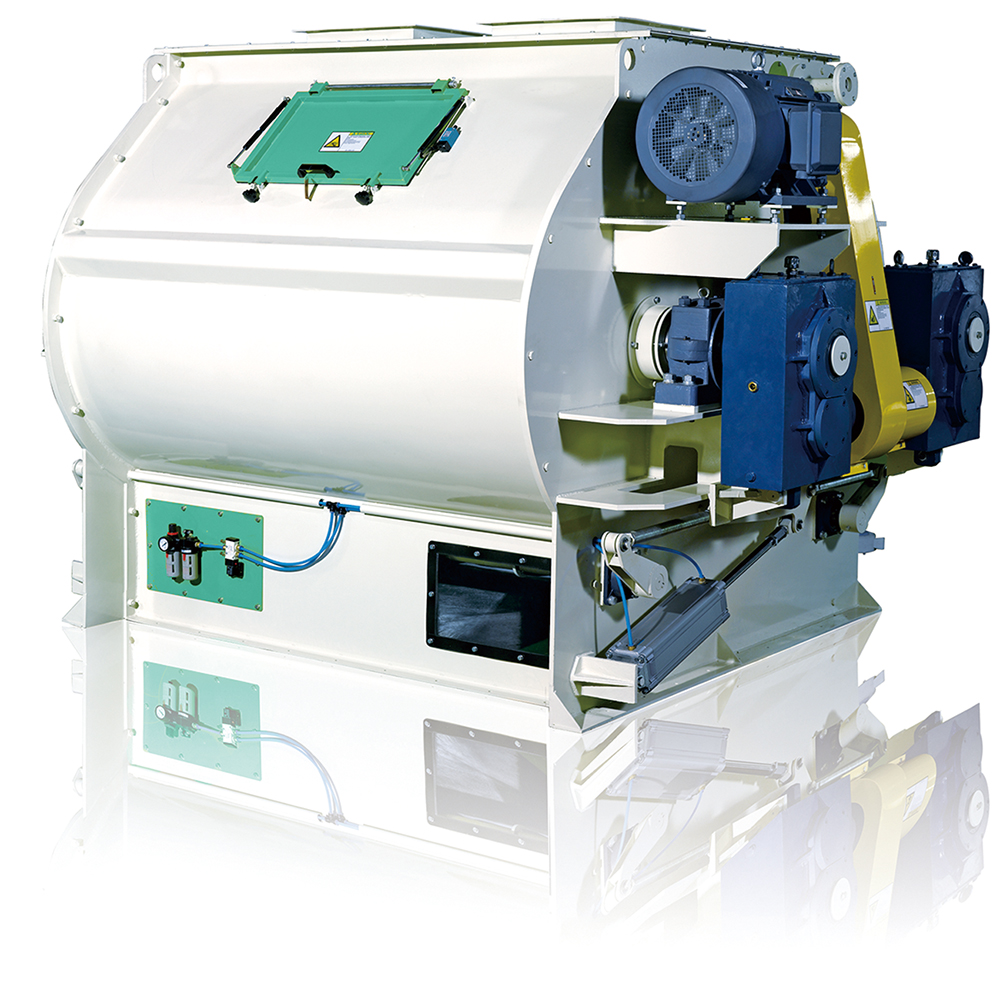

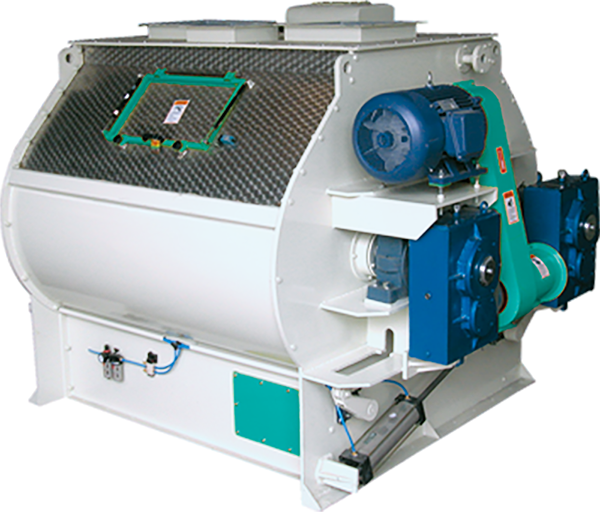

双轴混合机型

1. 适用于预混料、全价配合饲料、添加剂、食品、化工、医药等行业粉状物料的混合

2. 出料门采用大开门结构（大于90度）， 确保物料全部排空， 减少残留。

3. 出料门成型橡胶密封，确保不漏抖

4. 桨叶与机壳之间间隙.≤3mm， 混合均匀度CV≤5%， 更可达2.3%， 混合均匀度高，

   极大提高使用价值

5. 混合无死角， 周期短， 混合时间为30-120秒每批次， 排料时间10~20秒/批

6. 轴端采用填料密封， 不漏料；大检修门结构， 易于清理混合腔和更换桨叶

7. 配备油脂添加管道， 可适量添加多种液体；

8. 液体喷头采用雾化喷头， 可根据需要安装气动协助雾化喷头， 控制方便

9. 根据需要可选用全不锈钢或半不锈钢或碳钢材料制作

10. 双减速器皮带传动， 传动平稳， 比链条传动节约20%动力

11. 皮带低磨损， 维修保养便捷

12. 物料在失重状态下混合， 均匀度不受物料粒度、容重等因素限制

13. 该机造型美观， 结构紧凑， 占地面积小于其他混合设备

1. Widely suitable for premix, complete formula feed, additives, food,

    chemical and medicine industry etc. powder material mix.

2. Discharging door adopted full open structure and big angle （＞90°。） ,

    ensure material complete discharge and decrease vestigital.

3. The discharging door molding rubber seal to ensure no leakage material

4. The gaρ between blade and casing ≤3mm and mixing uniformity CV≤5%

    (can even reach 2.3%), high mixing uniformity.

5. Mix without dead angle, short cycle, mix time is about 30~120 seconds

    each batch, discharging time is about 3 minutes.

6. Shaft end adopted packing seal, without leakage material, big access

    door structure，easy for clean and change paddle

7. Equipped with oil liquid adding system, can add variety of liquid.

8. Liquid Sprayer adopted atomization, according to the need can install

    pneumatic assist sprayer and easy control.

9. According to the need can choose stainless steel or semi-stainless steel

   or carbon steel material to manufacture

10. Double reduction gear belt drive, smooth transmission, save 20% power

    than chain drive.

11. Low wearing of the belt, easy to maintenance and repair

12. Material mixing uniformity in zero gravity， not affected by material

    particle size, density and other factors

13. The machine structure compact with good shape, covers an area of space

     less than other mixing equipment

主要参数表：

工作现场：
