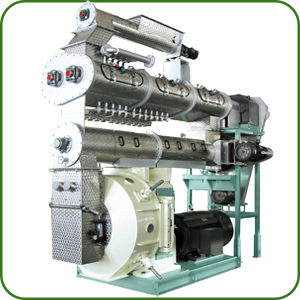

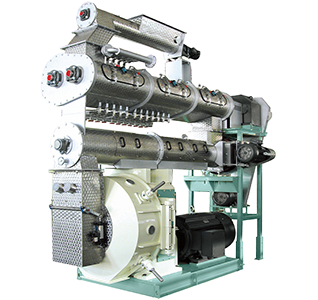

畜禽饲料制粒机
1. 调质器开门结构，清理和检修更方便。
2. 加长型全不锈钢调质器，桨叶和转速设计合理，
物料熟化更充分。
3. 喂料器采用变频控制喂料流量，准确可靠。
4. 配备液体添加口，可添加蜜糖、油脂等。
5. 可定制多层、加长、夹套型调制器。
6. 304不锈钢材质，长达10年使用寿命。
7. 箱体采用特殊工艺制造，大大提高
使用寿命，国际标准材质。
8. 采用齿轮传动结构，传输效率比皮带传动
高出15%。
9. 生产效率高，颗粒外观好，更清洁卫生。
10.适用于畜禽、水产饲料生产，可根据客户需要
对颗粒直径、长度进行调节。
11. 配备温度监控系统，保证设备安全生产。
12. 配备安全过载保护装置，确保机器使用寿命。
13. 柔性联轴器，确保低磨损从而延长连续工作
使用寿命。
14. 齿轮组合经过磨齿工艺处理，传功更稳定高效。
15. 配备全不锈钢切刀，带刻度。可视可调节。
16. 快卸式抱箍结构，便于拆卸维修和安装环模。
17. 根据需要可选配除铁装置，保护环模和压辊。
18. 根据客户要求，制粒机大小型号的不同，分别
采用进口NSK,SKF等高品质轴承并配进口油封。
19. 设有机外排料结构和观察窗，操作更简便。
20. 可生产高档畜禽料（鸡，猪，牛羊等）和高品
质鱼料。
1.Conditioner open door structure, cleaning and maintenance more
convenient.
2. Extended stainless-steel conditioner, reasonable design of
Conditioner blade and speed make the materials maturing fully.
3. The conditioner adopts frequency conversion control feed flow
rate accurate and reliable.
4. Equipped with liquid adding mouth，you can add honey, grease,
etc.
5. Can be customized multi-layer, extended, jacket type conditioner.
6. Up to more than 10 years service life
7. The box body adopt special casting technology and international
standard material.
8. Adopt gear transmission structure, transfer efficiency more than
15％ higher than a belt drive.
9. High production efficiency, good pellet appearance, uniform
length, more clean and health.
10. Suitable for livestock and poultry, aquatic feed production, can
according to customer needs to adjust pellet diameter and length.
11. Equipped with temperature monitoring system, ensure safety in
production.
12. Safety overload protection device, ensure the service life of the
machine.
13. The flexible coupling, ensure low wear and prolong the service
life of continuous work.
14. The gear combination adopt gear grinding process, the work is
more stable and efficient.
15. Equipped with stainless steel cutter and with scale.
16. Quick-release type hoop_ structure, easy to remove the ring die
to maintenance and installation.
17. Equipped with iron removal device, protect the ring die and
roller undamaged.
18. Adopt SKF or NSK bearing and oil seal
19. Equipped with outside machine discharging structure and the
observation window, the operation more convenient.
20. The machine can produce high-grade pig feed and fish feed.
主要参数表：
颗粒成品图：
